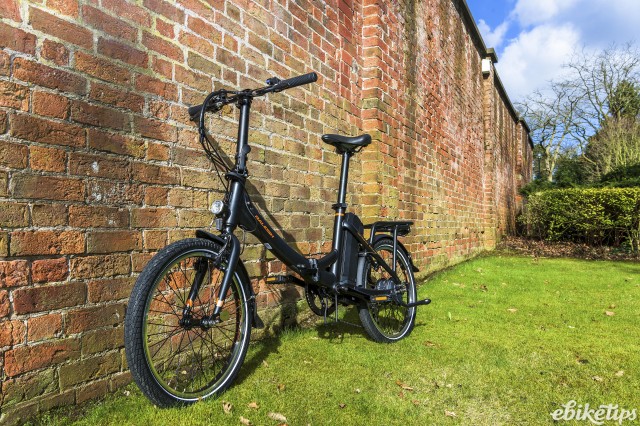

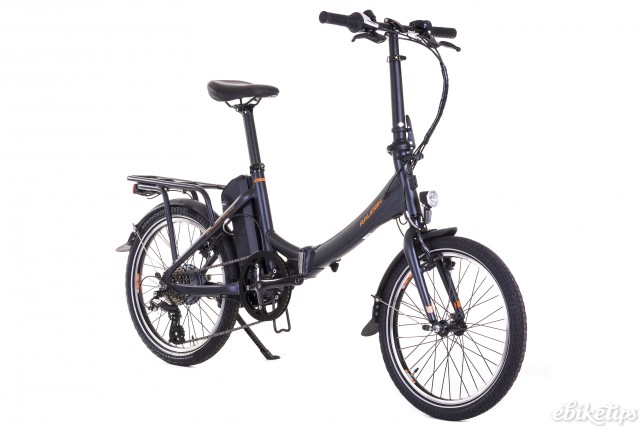

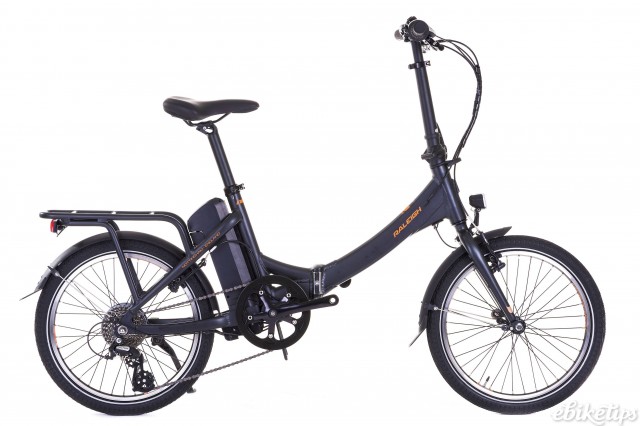

If you have a mixed commute, or not much space at home, then a folding e-bike can make a lot of sense. And Raleigh are entering that part of the e-bike market with the Stow-e-Way, an £1,100 folding e-bike with a TranzX hub motor.

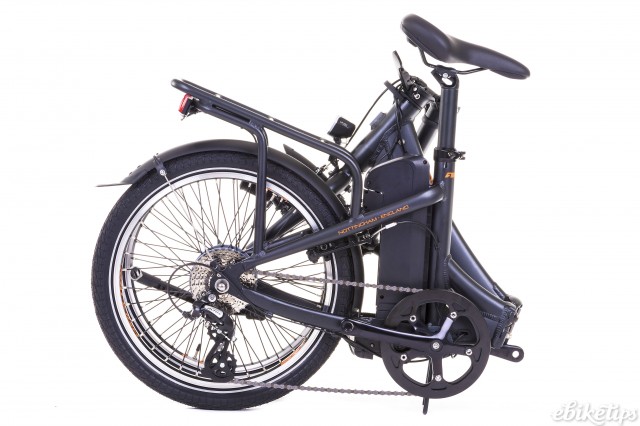

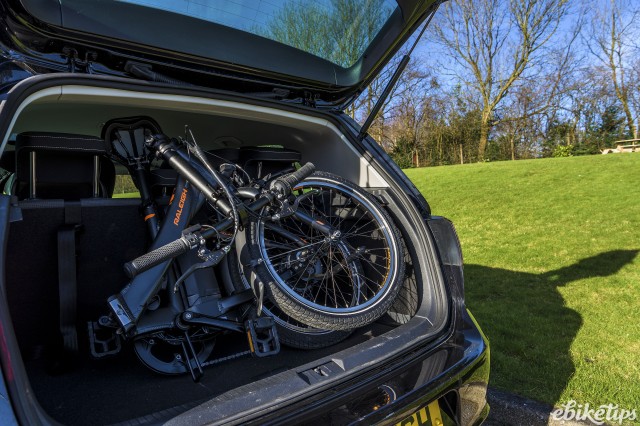

With a claimed weight of just under 20kg, the Stow-e-Way isn't the lightest folder out there but it's in the same ball park as similar bikes. With its 20" wheels and a folded size of 880mm by 440mm, it'll fit in the boot of your car or the luggage rack of most trains. The 245Wh battery helps to keep the weight down a bit; it'll also restrict the range (Raleight claim 30-50km) but this isn't a bike designed for grand adventures.

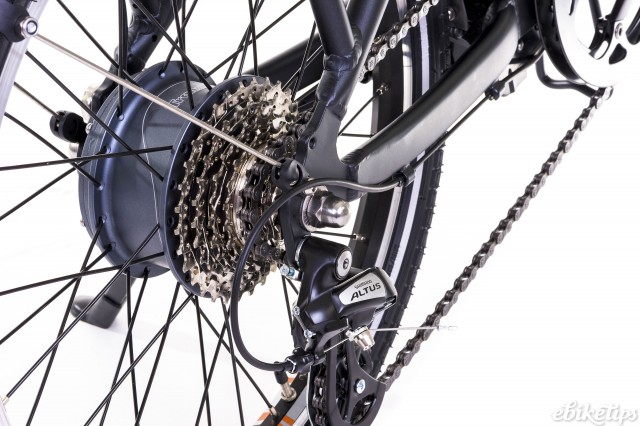

The Stow-e-Way uses TranzX's R15 brushless motor built into the rear hub, and an 8-speed derailleur transmission with a Shimano Altus mech. The wide-range 11-32T cassette shoucl cover cruising and climbing okay.

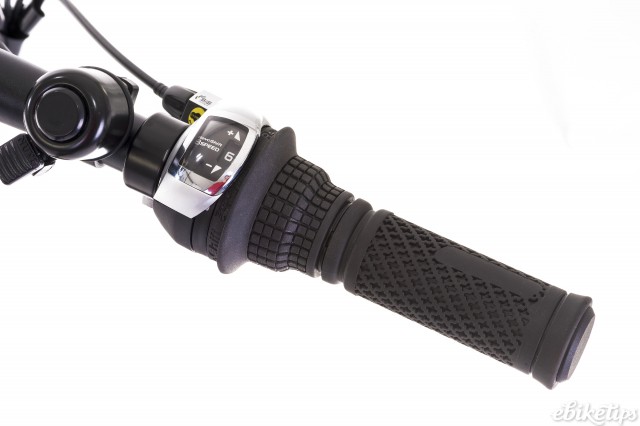

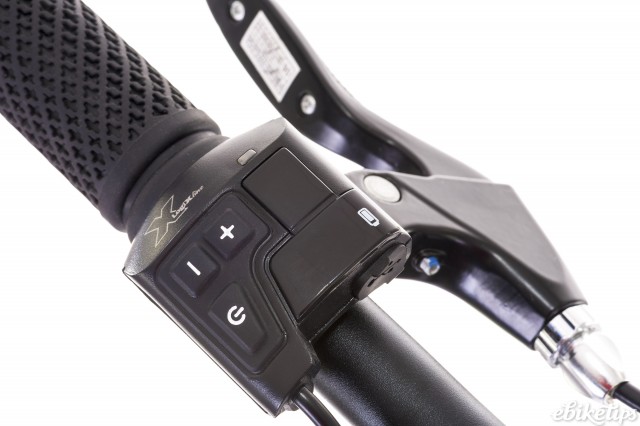

The TranzX system gets a bar-mounted LogixLine controller - that allows the bike to be hooked up to diagnostic systems, and you can also charge your phone from the USB port.

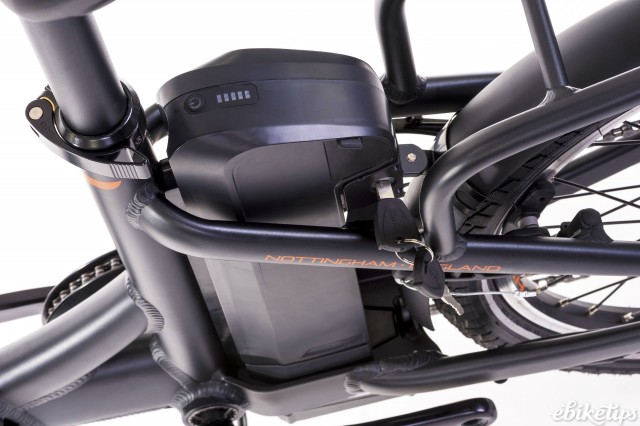

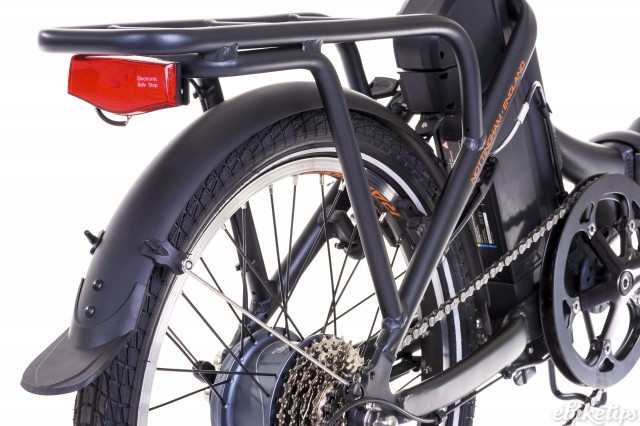

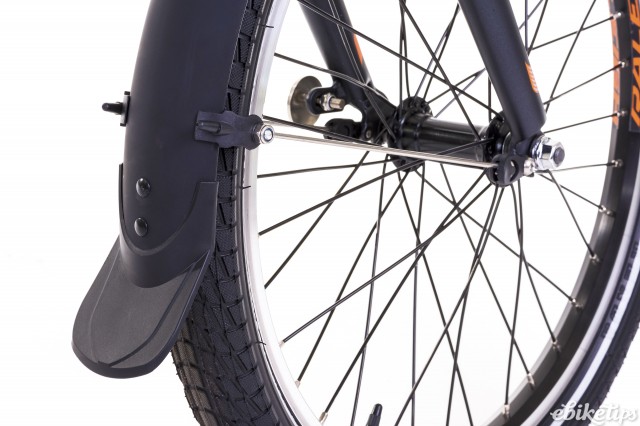

The battery sits behind the seat tube; that's a common setup for smaller-wheeled bikes where there's space for the battery there without increasing the length of the chainstays too much. The Stow-e-Way has a built-in rear rack for lugging your gear in panniers, and full mudguards to keep the worst of the weather off you.

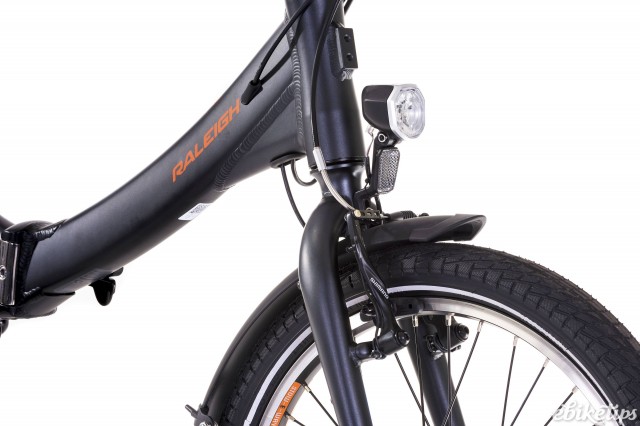

There's built-in lighting front and rear too, powered and controlled by the motor system. It certainly looks like an interesting bike, and we've asked Raleigh if we can get hold of one for testing. We'll let you know when we do!
Raleigh Stow-e-Way full spec
Weight | 19.7kg |
Motor | New TranzX R15 36v 250w brushless Quick stop motor |
Battery | TranzX 250wh 36V 6.8Ah Battery |
Display | TranzX DP15 PST Display, 3 assist levels with Walk Function |
Range | Eco 50km Normal 40km Climbing 30km |
Frame | Aluminium 6061 |
Fork | Raleigh Steel trekking fork for E bike |
Headset | Threaded 1" 1/8th black |
Shift Lever | Shimano Revoshift 8 Speed |
Brake Levers | Alloy V-brake |
Derailleur | Altus 8 Speed |
Brakes | Shimano V-Brake |
Crankset | 48th Alloy black with alloy chainguide |
Bottom Bracket | 124.5 mm Square taper |
Freewheel/Cassette | 8 Speed 11-32 freewheel |
Chain | KMC 8 Speed Chain |
Pedals | Folding Pedals with Anti Slip |
Rims | Double Wall rim 36 hole 20" |
Tyres | Kenda K841 20x1.95 reflective side wall |
Inner Tubes | 20"x1.95" presta |
Handlebars | Raleigh 560mm alloy flat bar Black |
Grips | Velo comfort grips |
Saddle | Velo ebike saddle |
Seatpost | Alloy micro adjust 33.9 x 460mm (600mm available aftermarket) |
Mudguards | Set Matt Black thermoplastic |
Rear Carrier | Integrated Alloy carrier |
Lighting | Front and Rear Lights Powered by TranzX system |
Extras | Kick Stand |
